Sentinel Series

Panel Solutions

Reliable UPS – Linked Distribution Panels

The Sentinel Series is designed to ensure safe and dependable distribution of AC and DC UPS backup power. Compact, flexible, and protection-focused, these panels are trusted in mission-critical environments where operational continuity cannot be compromised

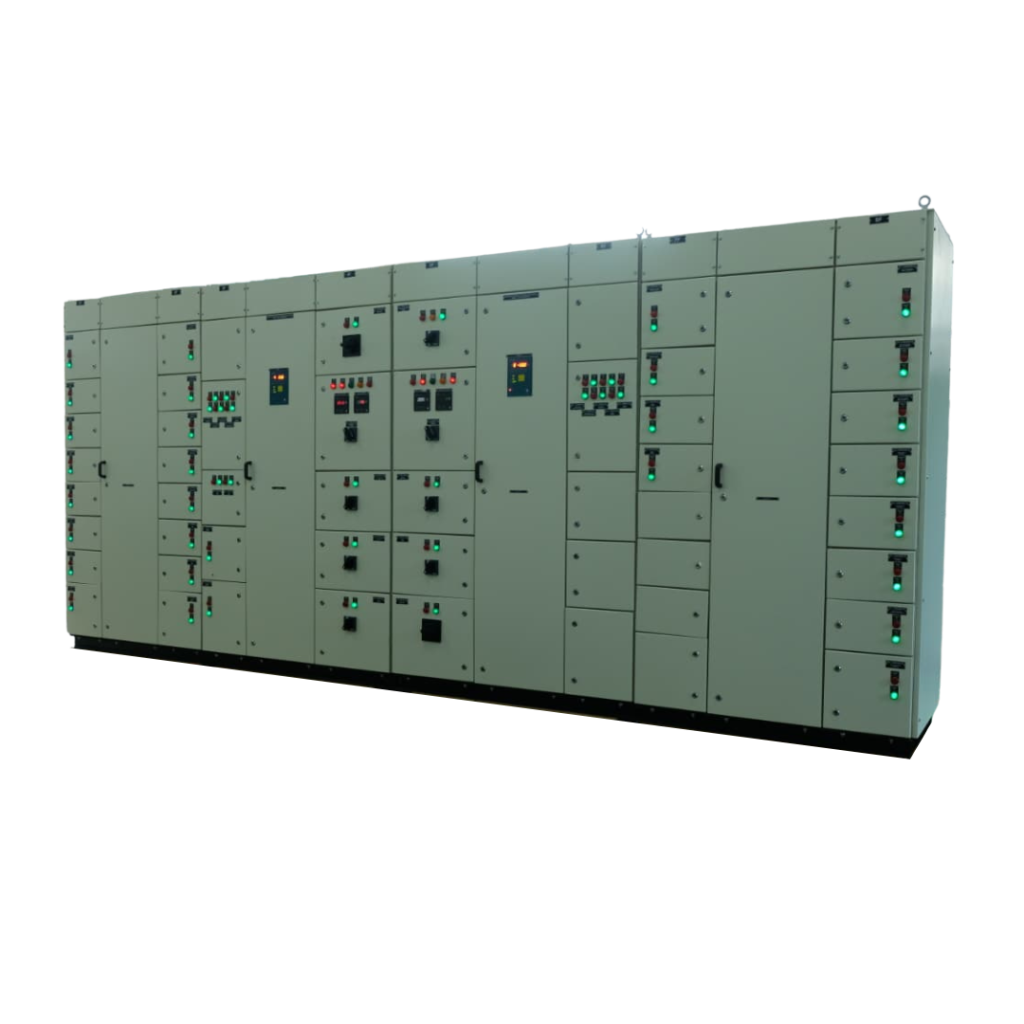

Sentinel Series (ACDB & DCDB Panels)

Purpose-built for UPS applications, Sentinel Panels safeguard sensitive loads while providing flexibility, safety, and monitoring options.

Reliable AC & DC UPS compatibility

Compact, space-efficient construction

Integrated safety and monitoring

Compliance with IEC/IS standards

Compact, Safe, and Intelligent UPS Distribution

The Sentinel Series ensures seamless operation by distributing UPS power safely and efficiently. With customizable configurations and monitoring integration, these panels protect vital equipment across industries.

Seamless UPS Integration

Works with both AC and DC UPS outputs.

Robust Protection

Includes MCCBs, MCBs, ACBs, fuses, SPDs, and isolators for reliable defense.

Compact Design

Optimized for control rooms with limited space.

Flexible Configurations

Supports redundancy, input/output feeders, and metering options.

Smart Monitoring

Optional alarms, relays, and SCADA/BMS integration.

Compliance Ready

Designed as per IEC 61439 / IS standards with IP31, IP42, and IP5x enclosures

Technical Specifications

Specification	Details
Rated Voltage	ACDB: 230V / 415V AC, 50Hz DCDB: 24V / 48V / 110V / 220V DC
Busbar Rating	Up to 800A (Cu/Al)
Protection Devices	MCCB, MCB, ACB, fuses, SPDs, isolators
Metering	Digital/Analog (V, A, kW, kWh, PF, frequency) with relays
Enclosure Protection	IP42 / IP54 (indoor)
Construction	Fixed / Semi-drawout / Fully drawout; single or double front
Type	Floor-mounted / Wall-mounted
Compliance	IEC 61439-1/2, IS 8623

Why Choose Sentinel Panels from Chhabi ?

Backed by decades of engineering expertise, Chhabi Sentinel Panels provide the assurance industries need for continuous operations.

Proven safety with advanced protective devices
Compact and efficient layouts for modern facilities
Integration ready with SCADA and monitoring systems
Built and tested as per international standards
Flexible configurations for diverse UPS setups
Supported by Chhabi’s service and reliability record
