At Chhabi Electricals, we understand that even a momentary power interruption can disrupt critical operations. That’s why our Industrial AC UPS solutions are engineered to provide seamless backup, clean power, and intelligent control — safeguarding your systems against outages, surges, and fluctuations. From robust, time-tested designs to advanced digital platforms, we deliver the reliability and performance your operations can always depend on.
Seamless Industrial Power Protection

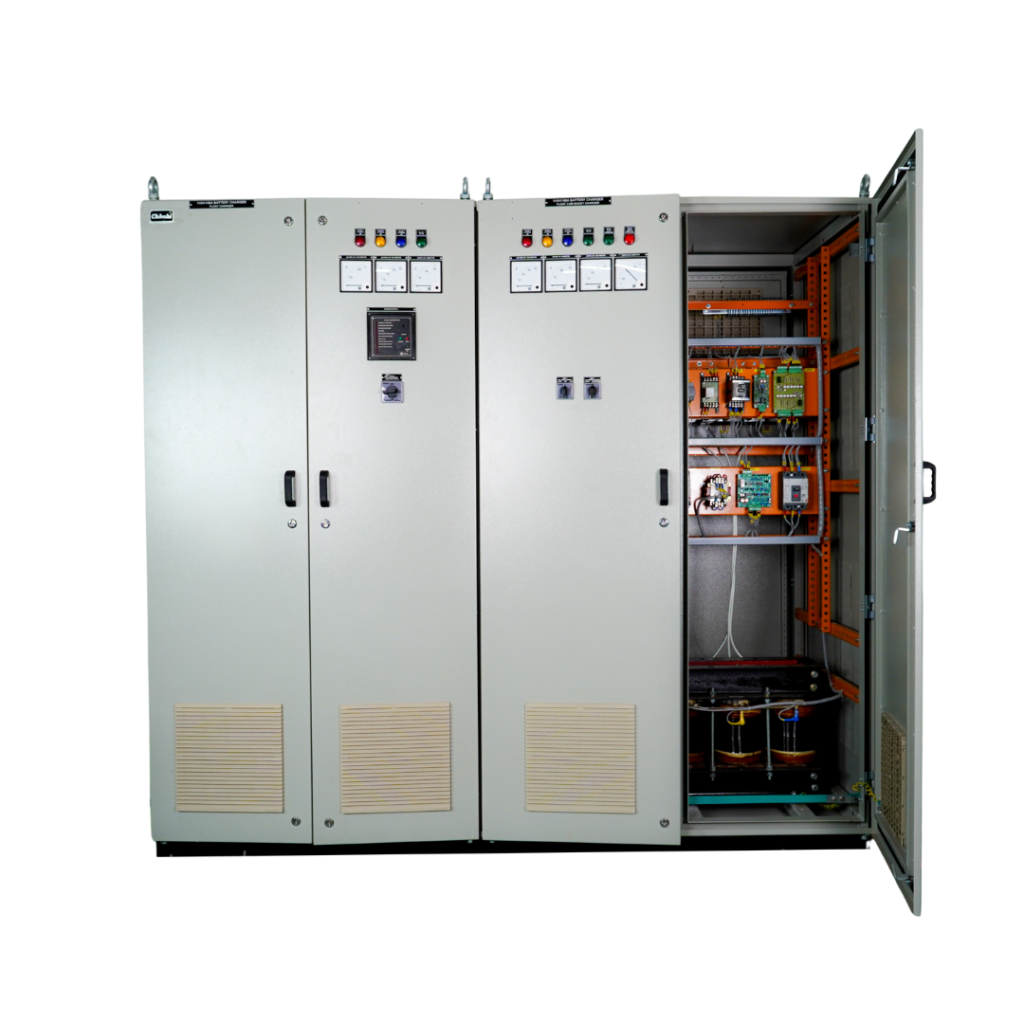

The Aegis Series delivers uninterrupted, clean, and stable power for critical industrial and utility operations. Engineered with robust inverter technology, it ensures that even under harsh grid conditions, your systems remain protected from outages, surges, and fluctuations
At Chhabi Electricals, we understand that even a momentary power interruption can disrupt operations. The Aegis Series is built to eliminate disturbances and prevent downtime, combining high efficiency, rugged construction, and digital intelligence. It is ideal for heavy industries, utilities, and mission-critical facilities
Advanced inverter/rectifier design with >90% efficiency.
Wide input tolerance, high fault-withstand capacity.
DSP/IGBT control ensures precise voltage regulation.
Compatible with external BMS for VRLA, Li-Ion, and NiCd.
Input/output isolation transformer for safe operation.
RS485, Ethernet, Modbus, SNMP for SCADA/DCS integration.
IEC/IS compliant, MTBF aligned to global standards
| Specification | Details |
|---|---|
| Input Voltage Range | 1-Phase: 230V AC (±10%) / 3-Phase: 415V AC (±10%) |
| Input Frequency | 50 / 60Hz (±5%) |
| Power Factor | > 0.99 at full load |
| Input Harmonics (THDi) | < 3% |
| Soft Start | Available |
| Rectifier Type | IGBT-based, high-frequency PWM |
| Efficiency | ≥ 96% |
| Charging Capacity | Adjustable 0–100% of rated current |
| Battery Compatibility | VRLA, Lithium-Ion, NiCd |
| DC Voltage Ripple | < 1% |
| Specification | Details |
|---|---|
| Input Voltage | 1-Phase: 230V AC / 3-Phase: 415V AC |
| Output Voltage | 1-Phase: 230V AC (±1%) / 3-Phase: 415V AC (±1%) |
| Output Frequency | 50/60Hz |
| Waveform | Pure sine wave |
| THD | < 2% (linear load), < 5% (non-linear load) |
| Overload Capacity | 125% for 10 min, 150% for 1 min |
| Crest Factor | 3:1 |
| Efficiency | ≥ 90% |
| Load PF Compatibility | 0.7 lag to 0.99 lead |
| Technology | IGBT PWM-based inverter |
| Auto Synchronization | With bypass supply |
| Parallel Redundancy | Optional (N+1) |
| Dynamic Response | ≤ 20ms for 100% load step |
| Cold Start | Supported |
| Configurations | 1Ø–1Ø, 3Ø–3Ø, 3Ø–1Ø, 1Ø–3Ø |
| Protection Features | Overload, short circuit, OV/UV, overtemperature, phase imbalance |
| Specification | Details |
|---|---|
| Type | Fully static, IGBT-based |
| Transfer Time | ≤ 4ms (online), ≤ 0ms (double conversion) |
| Bypass Voltage Range | ±15% |
| Overload Capability | 125% for 10 min, 150% for 1 min, 1000% for 1 cycle (fault clearing) |
| Auto Re-transfer | Supported |
| Protection Features | Overcurrent, short circuit, synchronization with utility, manual bypass |
| Specification | Details |
|---|---|
| Operating Temperature | 0°C to 50°C (derating above 40°C) |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 0–95% (non-condensing) |
| Altitude | ≤1000m (without derating), up to 3000m (with derating) |
| Cooling | Forced air cooling with redundant fans |
| Enclosure Protection | IP20 standard, IP31 optional |
| Compliance | IEC 62040-1/2/3 |
| Category | Details |
|---|---|
| Display | LCD panel with real-time monitoring of input, output & battery parameters |
| Communication Ports | RS232, RS485, MODBUS, USB, SNMP (optional) |
| Remote Monitoring | SNMP-based monitoring |
| Alarm Indications | Audible & visual alarms for warnings and faults |
| Specification | Details |
|---|---|
| Power Ratings | 5kVA – 200kVA |
| Topology | Online double conversion |
| Parallel Redundancy | N+1 configurable |
| Supported I/O Combinations | 1Ø–1Ø, 3Ø–3Ø, 3Ø–1Ø, 1Ø–3Ø |
At Chhabi Electricals, we go beyond supplying UPS systems — we deliver engineered reliability, customized configurations, and lifecycle support. Our solutions are designed to adapt to your environment, integrate seamlessly with your infrastructure, and keep your operations running without compromise.
